UML & Class Diagrams

Render Mermaid.js diagrams in your API Docs.

printing press renders Mermaid.js content in two ways:

  • Fenced code blocks in OpenAPI or AsyncAPI markdown descriptions.
  • Auto-generated class diagrams on model pages when schema relationships exist.

Mermaid in markdown

Put a Mermaid fenced code block in any contract field that supports markdown, such as info.description, operation descriptions, message descriptions, or schema descriptions.

```mermaid
graph TD
  Search --> Book
  Book --> Pay
```

printing press will turn that fence into a rendered Mermaid block with a plain code fallback.

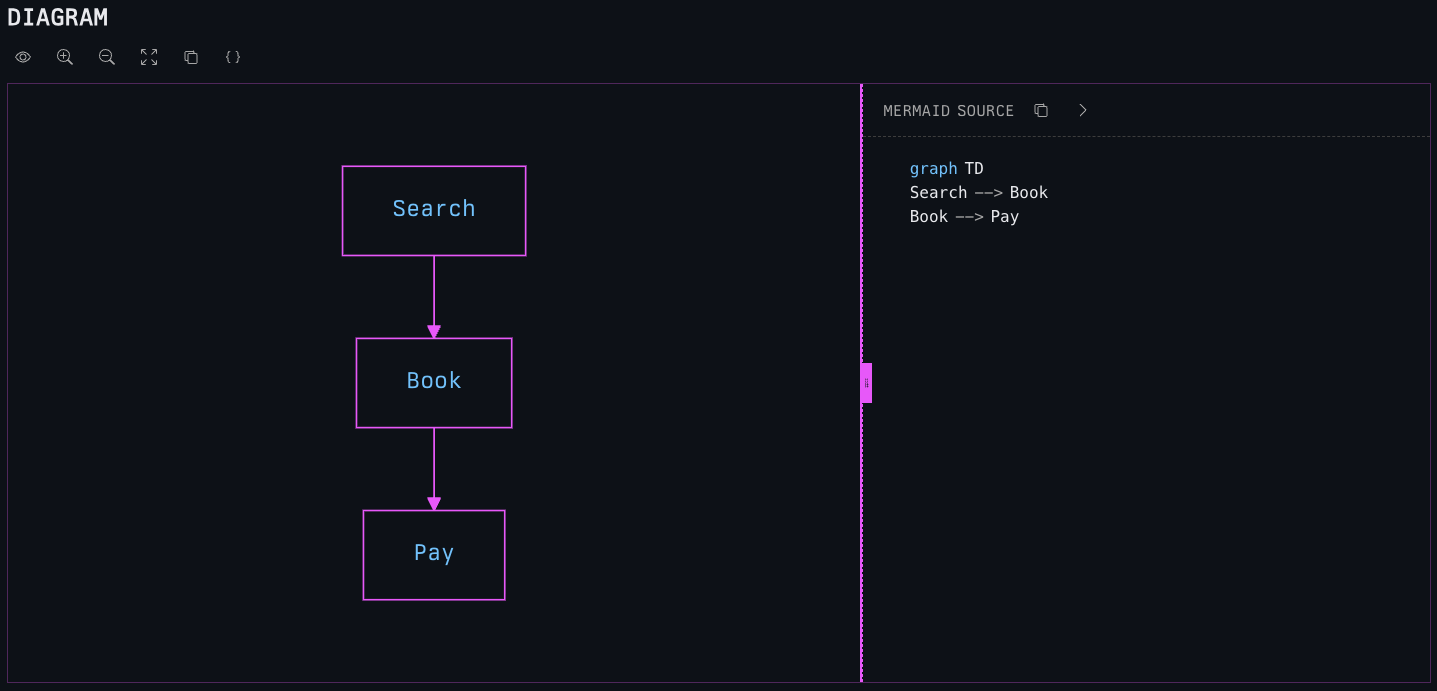

Rendering of generated mermaid JS diagram
Auto render Mermaid UML Diagrams with a super stylish set of themes.
The fence language must be mermaid. Empty Mermaid fences are ignored.

Generated class diagrams

Model pages will include generated Mermaid class diagrams for complex schemas with one or more relationships.

Some common relationship sources include:

  • Direct $ref properties
  • Array items that reference another schema
  • Composed schemas using allOf, anyOf, oneOf
  • AsyncAPI message payload and header schemas

Simple scalar schemas and flat objects with only primitive properties do not get generated class diagrams. Not because we can’t, but because there is no point.

OpenAPI and AsyncAPI schemas use the same neutral schema diagram engine. Referenced component schemas get diagrams on their model pages. Inline AsyncAPI payload and header schemas get diagrams inside the operation or message content that owns them. Non-JSON schema formats such as Avro are rendered as raw schema content and are not interpreted as JSON Schema.

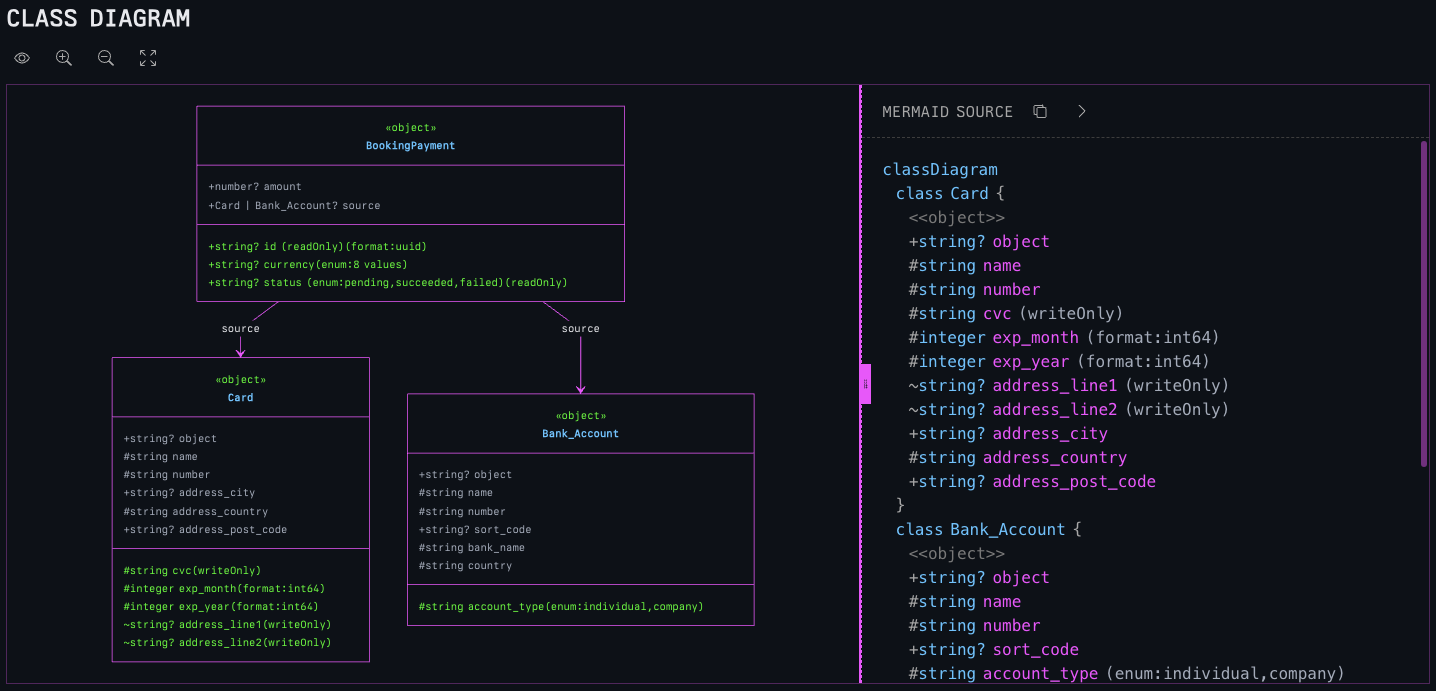

Rendering of generated mermaid JS class diagram
An example class diagram generated automatically for the BookingPayment class.

Dependency explorer

Model pages may also include a dependency explorer when graph data is available.

If a model is complex (has ancestors, siblings or descendants) then an object graph will be generated, rendering the dependency graph of that object. Everything that is upstream (ancestor) is dimmed, everything downstream is not.

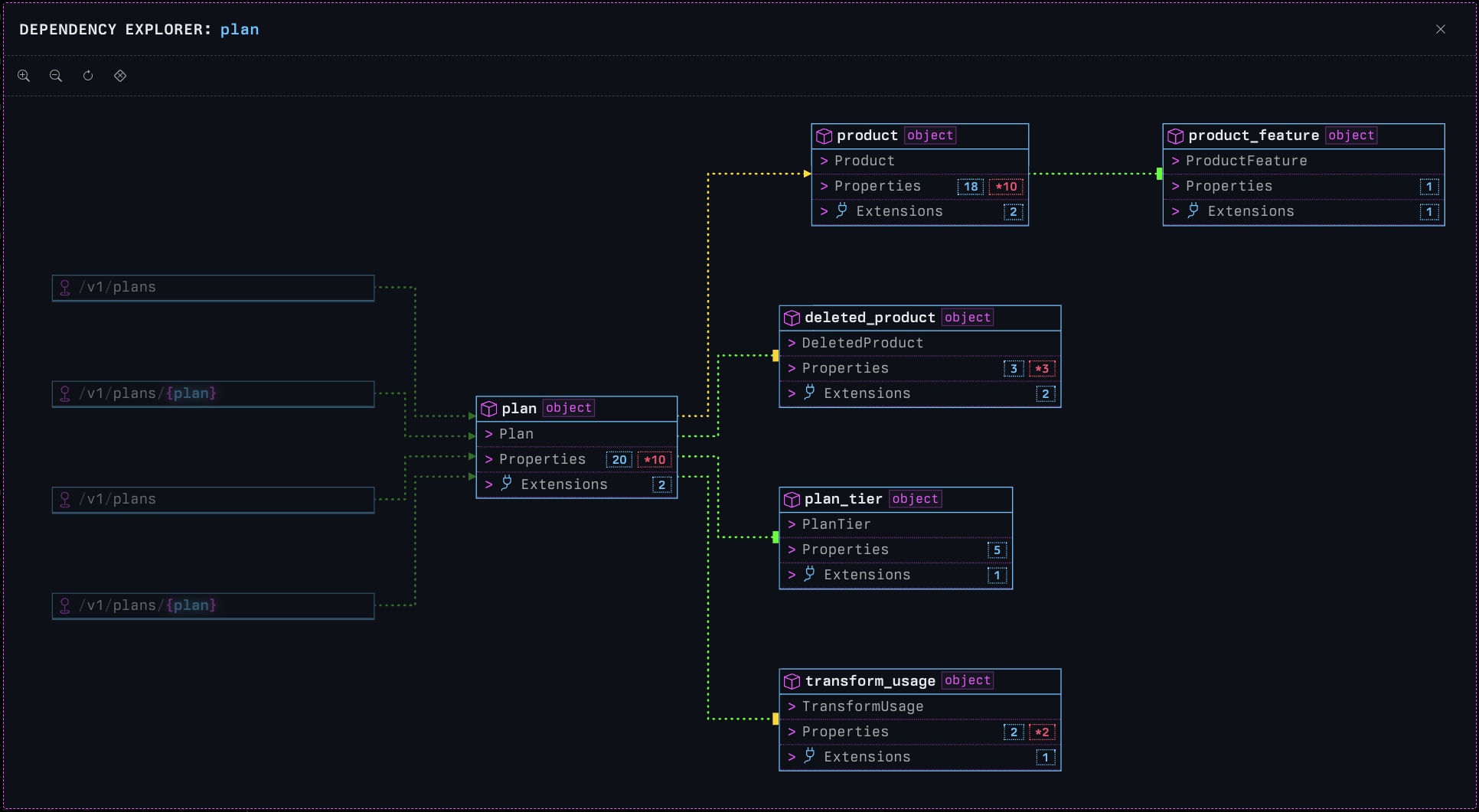

Rendering of generated dependency explorer
See the upstream and downstream relationships between objects

When both a generated class diagram and graph data are present, printing press shows both views in tabs:

  • CLASS DIAGRAM
  • DEPENDENCY EXPLORER
